Product Overview

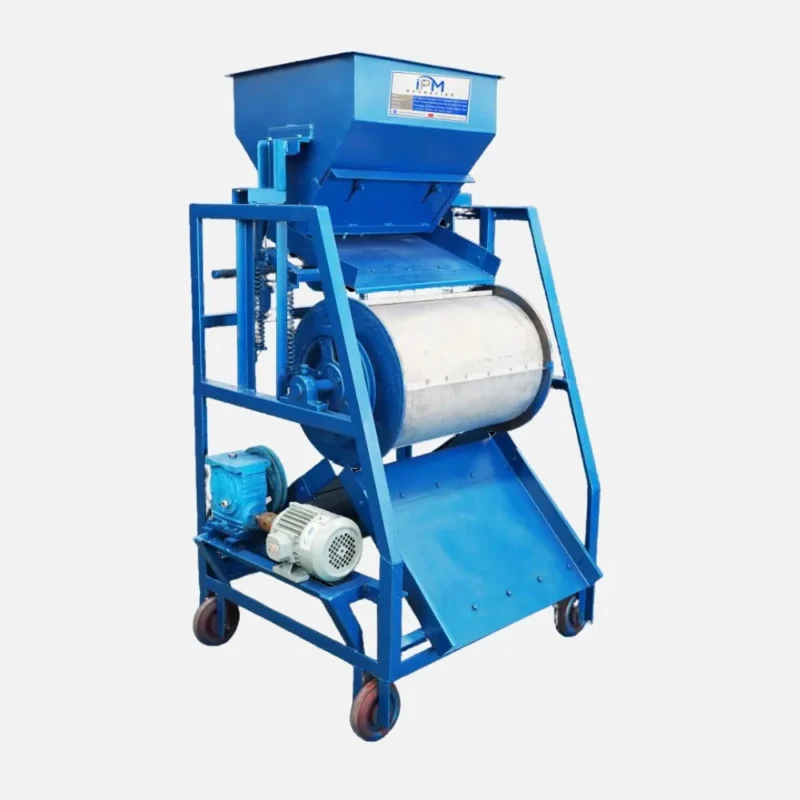

High-Performance Magnetic Drum Separators
Installing a high-performance magnetic drum separator is the most efficient way to achieve continuous, high-volume ferrous metal extraction from dry bulk materials. At IP Magnate, our drum magnets are expertly engineered to purify massive quantities of granular, crushed, and powdered materials. Whether you are processing municipal solid waste, mining ores, or recycling plastics, our equipment automatically separates heavy tramp iron and fine ferrous contaminants, protecting your downstream crushers and guaranteeing product purity without interrupting your production flow.
Single Drum Type Magnetic Separator (SDMS) :
Our Permanent Drum type separator which is most and widely used separating tramp iron from nonmagnetic material processed in large quantity, for the purity of end products, recovery of metal having commercial value and protection of processing plant and machinery. SDMS is widely used in all the processing industry for separation of iron contamination from minerals, ceramic, food, grains, sand, plastic fertilizers, slag, ores and in many more products.
Double/Multi Drum Type Magnetic Separator :
Double Drum Type Magnetic Separators is mostly used for his functionality of highest purity. The material is going to pass through the magnet twice in Double Drum type machine. Mainly it is used for separation of iron contamination from Minerals, Ceramic, Fractory and many other products. In Double Drum Type Magnetic Separators high power permanent magnetic plate is provided at a material outlet. Modern an Isotropic Permanent Magnets are used having highest creativity and everlasting magnetic strength. Machines are available with vibrating material inlet Hopper and totally enclosed design to avoid dusting and pollution. Online fitting design is also available as per requirement.
Our organization is well-known across the globe as an eminent enterprise engaged in manufacturing, exporting and supplying superior quality of Magnetic Drum Separator. It is broadly utilized to eliminate, getexporting rid of impurities or separate the iron are ferrous materials, and this drum separator is well maintained using the premium quality of raw material in accordance with the set quality standard norms.
How Our Drum Magnet Works
The operation of our magnetic drum separator is fully automatic and designed for 24/7 continuous duty. The machine consists of a stationary internal semi-circular magnetic arc, surrounded by a rotating outer drum shell made of heavy-duty stainless steel.
As the bulk material is fed evenly onto the top of the rotating drum, the non-magnetic product flows naturally over the shell and falls straight down in a normal trajectory into an accepted material chute. However, the ferrous metals are instantly attracted by the stationary magnetic arc inside. These metals are held tightly against the rotating shell and carried underneath to the back of the drum. Once the shell rotates past the internal magnetic field, the tramp iron is released and drops safely into a separate reject bin.
Key Features & Technical Advantages
We manufacture our continuous separation equipment to withstand heavy abrasive wear and harsh industrial environments:
- Continuous Self-Cleaning: Delivers fully automatic metal separation with zero downtime required for manual cleaning, making it ideal for high-tonnage plants.
- Stationary Magnetic Core: The internal magnets remain completely stationary while only the outer shell rotates, ensuring maximum holding power exactly where it is needed.
- High-Intensity Magnetic Fields: Available in deep-reaching Strontium Ferrite for capturing heavy tramp iron, or ultra-strong Rare Earth (Neodymium) for extracting fine, weakly magnetic particles.
- Heavy-Duty Stainless Steel Shell: The rotating outer drum is fabricated from wear-resistant, non-magnetic stainless steel, and can be fitted with replaceable wear covers or cleats for highly abrasive materials.
- Dust-Proof Enclosures: Can be supplied as a bare drum for existing chute integration, or fully enclosed in a rugged steel housing with flanged inlets and outlets to prevent dust emissions.
Wide Industrial Applications
Because of its automated cleaning and high-capacity processing capabilities, our drum separation equipment is heavily utilized in:
- Mining & Minerals: Upgrading iron ores and removing tramp metal from crushed stone, coal, and abrasive minerals.
- Recycling & Waste Management: Extracting valuable ferrous metals from shredded tires, e-waste, and municipal solid waste.
- Plastics & Glass: Purifying cullet (crushed glass) and plastic pellets before the remelting process.
- Food & Grain: Ensuring high-volume, metal-free processing in large agricultural milling and packaging plants.
Request a Custom Quote
Upgrade your plant with automatic, high-volume metal separation. Contact IP Magnate’s technical team today with your material specifications and tons-per-hour (TPH) capacity, and let us custom-engineer the perfect magnetic drum separator for your facility.
